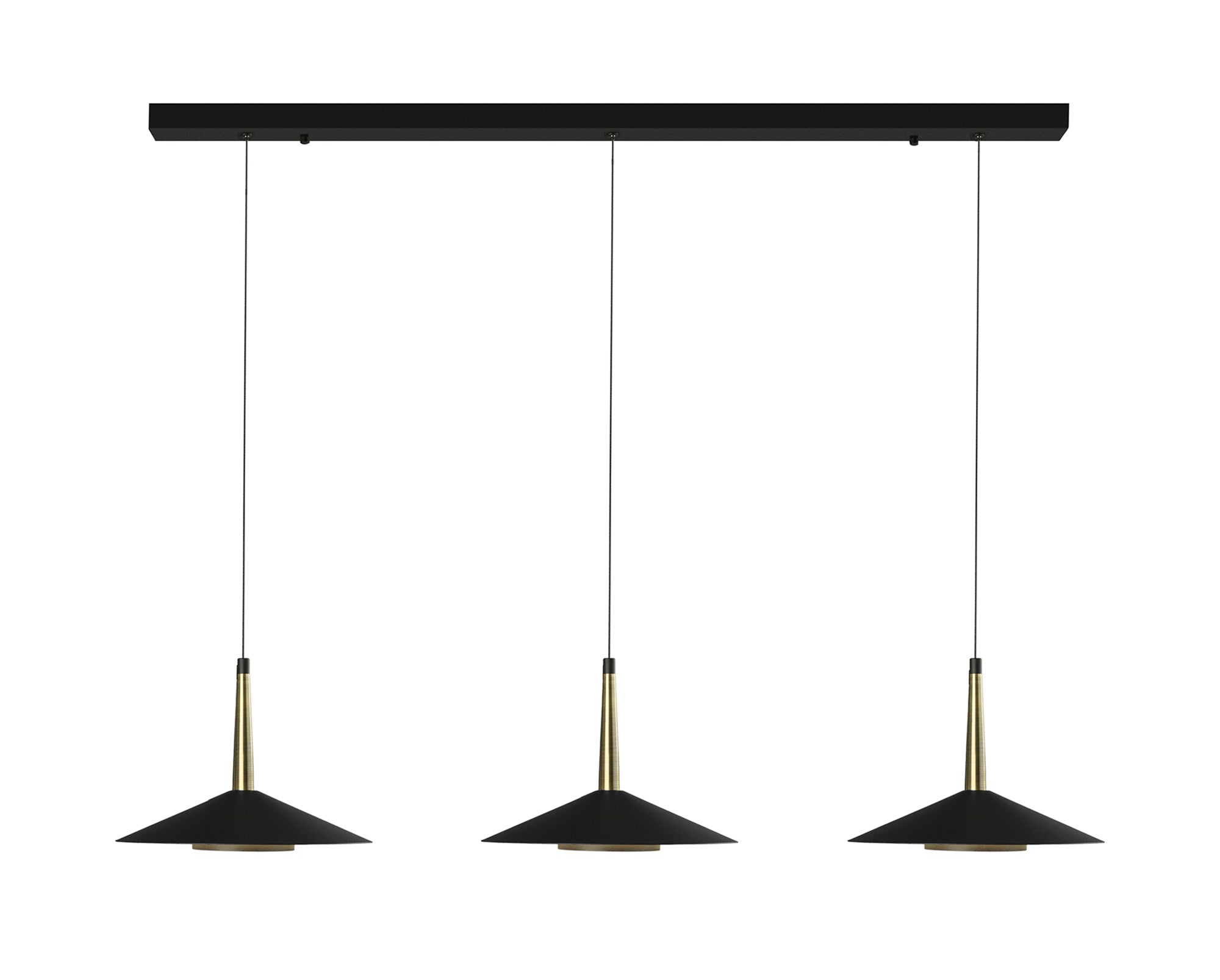

Orion 3Lt Linear Pendant 24w LED

Mantra's Orion range is a collection of pendant lights with an unconventional twist. The two and four light versions are supplied with wire locker components which can be used to widen the range at which each light, with their shallow cone frame, is hung from the ceiling. This rids the user of the constraints enforced by a ceiling bar allowing further control and design over the aesthetic of the fixture. The single, 3 light linear and four light round pendants however, follow a more traditional structure with their fixed plates.

Brief Description Orion Linear Pendant 3 Light 24W LED
Catalogue Description LED 3 Light Linear Pendant
Colour Finish Black
Colour Finish 2 Antique Brass
Ceiling Mountable Yes
Item Nett Weight (kg) 3.25kg
Length (mm) 1200mm
Width (mm) 250mm
Minimum Drop (mm) 250mm
Maximum Drop (mm) 2020mm
Body Height (mm) 185mm
Materials Used Acrylic
Energy Class A++ to A
No: of Lamp 3
Lamp Socket Integral LED
Recommended Lamp Integral LED
Max Wattage Lamp (W) 24W
Lamp Included Yes - Integrated
Type of Lamp Included Integrated LED
Colour Temperature (K) 3000K Warm White (±5%)
Average Life of LED (hrs) 30000hrs
Type of LED Edison 2835
Beam Angle (°) 120°
System Flux (lm) 1770lm (±5%)
CRI >80
Driver Included Yes
Type of Driver Constant Current
Constant Current Output (mA) 350mA
Min/Max. Voltage Output (V) 57-72V
Load Range (W) 20-25W
Protection Class Class 2 - Double Insulated
Total Power Consumption (W) 24W (±5%)
Input Voltage (V) 220-240V~50/60Hz
Dimmable No
IP Rating IP20
Average Life (hrs) 30000hrs
Warranty (yrs) 3yrs
